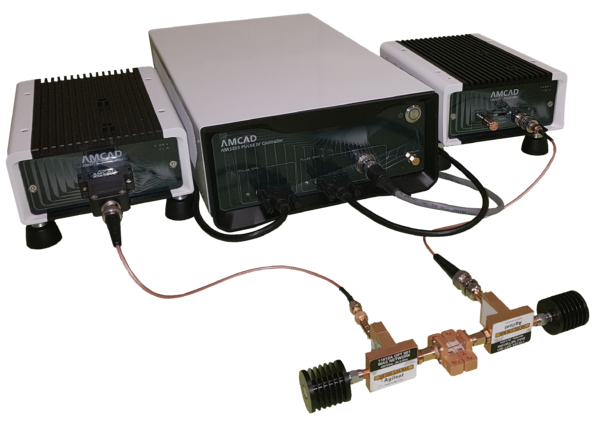

As a pioneer in Pulsed IV Measurements for compact transistor modeling, AMCAD launches a new family of pulse pattern generators.

Because of our ongoing & increasing modeling service activities, our R&D Team have been always focused on improving these measurement solutions. We are pushing ahead the performances in term of speed, accuracy, and new measurement concepts. Contact Exocis in France or contact Maury Microwave for international sales to discover what’s now possible!

Main Features:

• Unbreakable pulsers (thermal, SOA and DUT breakdown protections)
• Included optimized power supplies allow unrivaled fast IV plotting
• Pulsed or DC operation, pulse width down to 200ns
• Long pulse time domain measurement capabilities
• Internal or external synchronization
• Interlock function disables pulsers within 1µs
• High System flexibility (later upgrade possible):
  • 1 gate and 1 drain pulser
  • 2 gate pulsers or 2 drain pulsers
  • 3 and 4 pulser systems
